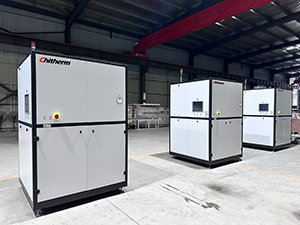

一、 設備名稱、型號：BF230-10型鐘罩爐

1. Model: BF230-10 Bell Furnace

二、 應用領域：

2. Applications

主要用于為低溫共燒陶瓷（LTCC）燒結工藝，也能夠廣泛應用于其它相關電子產品的排膠燒結工藝。

This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.

三、 設備主要技術性能

3. Technical Specification:

3.1 額定溫度：850℃；

Working Temp:850℃

3.2 **溫度：1000℃；

Max. Temp:1000℃

3.3 爐膛尺寸：600mm×600mm×650mm（D×W×H）

Chamber Dimensions: 600mm×600mm×650mm（D×W×H）

3.4 有效尺寸：500mm×500mm×500mm（D×W×H）

Effective Dimensions: 500mm×500mm×500mm（D×W×H）

3.5 爐膛保溫材料：硅酸鋁陶瓷纖維板

Chamber Insulation Material: Aluminosilicate Ceramic Fiber

3.6 爐膛內壁材質：石英玻璃

Inner Surface of Chamber: Quartz Glass Cover

3.7 加熱元件：FEC陶瓷纖維加熱板（內嵌進口Kanthal加熱絲）

Heating Elements: Kanthal Coils in Ceramic Fiber Block

3.8 控溫熱偶類型：N分度雙芯熱電偶；

Thermcouple: Type N Dual-Core TC

3.9 控溫點數：側面由上到下共4點

Temperature Control Point: 4 Points

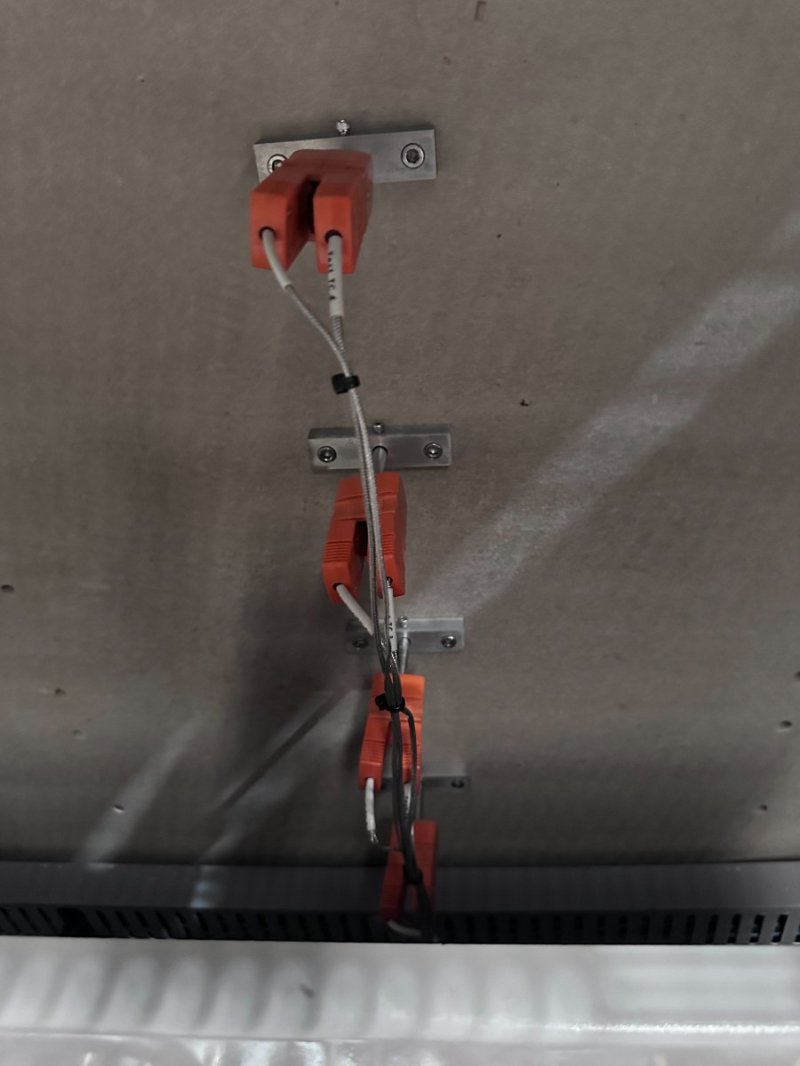

3.10 測溫熱電偶：8根

Test TC: 8 Thermcouple

3.11 進氣預熱：4路；

Pre-Heating: 4 Inlets

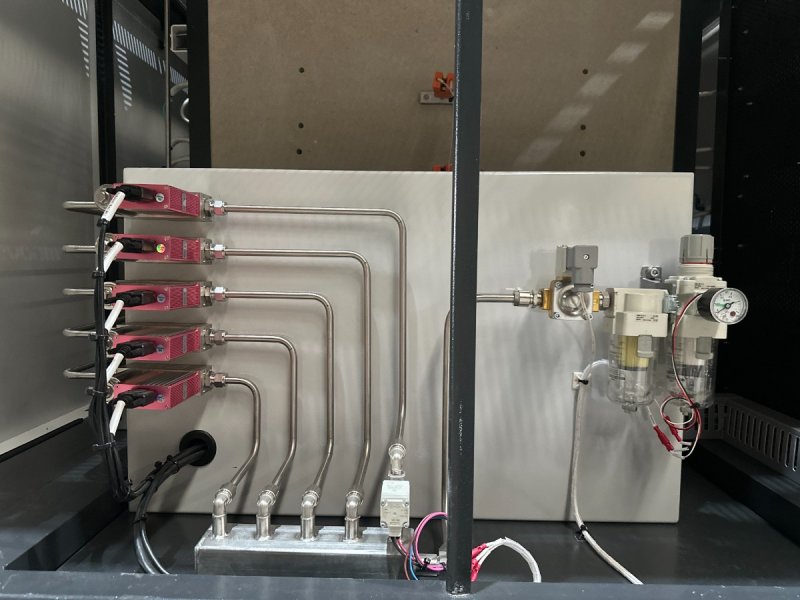

3.12 進氣過濾：三級（一級灰塵、二級水汽、三級油氣）

3 Stages Pre-Filtering of air: 1- dust, 2 - water drops, 3 - oil vapor

3.13 控溫精度：≤±1℃；

Temperature Control Precision≤ ±1℃

3.14 控溫方式：日本進口溫控模塊；

Temperature Control Mode: Temperature controller imported from Japan

3.15 升溫步數：20步；

Heating-up Steps: 20 Steps

3.16 溫度記錄：上位機對爐膛溫度和氣體加熱溫度實時采樣記錄；

Temperature Record: IPC makes a real-time sampling record of the chamber temperature and the gas heating temperature

3.17 升溫速率：≤ 6℃/min（700-900℃升溫速率可達到10℃/min，但不推薦快速升溫，會影響爐膛內溫度一致性）；

Heat-up Rate ≤6℃/min (10℃/min in range 700-900℃ is possible but not recommended because it’ll cause of less accuracy of temperature keeping. )

3.18 爐溫均勻度：400mm×400mm×400mm（D×W×H）區域內優于±3℃；

Chamber Temperature Uniformity:400mm×400mm×400mm (D×W×H) area is better than ± 3℃

3.19 表面溫升：≤ RT+35℃

Furnace Surface Temperature ≤ RT+35℃

3.20 升降系統：設備升降運行系統采用三點控制，具備水平出料功能。隨時可以停止，運行平穩、可靠

Lift System: the equipment lifting operation system adopts three-point control, automated hearth extension，which can be stopped at any time, with stable and reliable operation;

3.21 **升降行程：800mm

Maximum Lifting Trip: 800mm

3.22 承載重量：≤150Kg（含產品和治具）

Loading Weight ≤ 150Kg ( including products and setters )

3.23 總功率：52kW（**升溫功率：40kW+**氣體預熱功率：4×3kW）

Total Power: 52kW ( Max Heating Power:40kW, Max Gas Preheating Power:4×3kW )

3.24 外形參考尺寸：1520×1520×2250mm（D×W×H）

Outline Dimensions: 1520×1520×2250mm（D×W×H）

3.25 設備重量：約1300kg

Weight: about 1300kg

3.26 設備狀態燈：紅黃綠三色燈

Status Light Tower: Red/Yellow/Green

3.27 外觀顏色：淺灰色

Appearance Color: Light gray

3.27 設備語言：銘牌、標識、控制軟件、使用說明書等使用英文

Furnace Language: Labels, software UI, manuals in English

四、 爐體結構組成

4. Composition of Furnace Structure

設備主要由架體、爐膛、底托、升降機構、進出機構以及控制系統組成。

The equipment is mainly composed of outer frame, chamber, bottom support, lifting system and control system.
